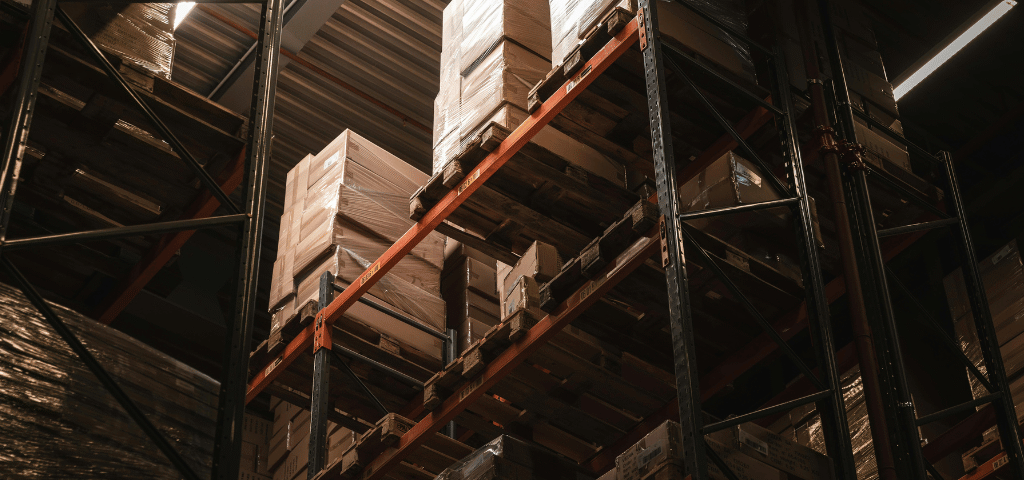

Heavy Duty Rack vs Pallet Rack: When to Upgrade Specs

Standard pallet racking handles most warehouse storage in Singapore, but it fails fast when engine blocks, moulds, or metal coils enter the picture. Knowing when heavy duty rack vs pallet rack is the right call saves repair bills and downtime. This blog will walk you through what changes in the spec, when to upgrade, and how a heavy duty racking system is engineered differently.

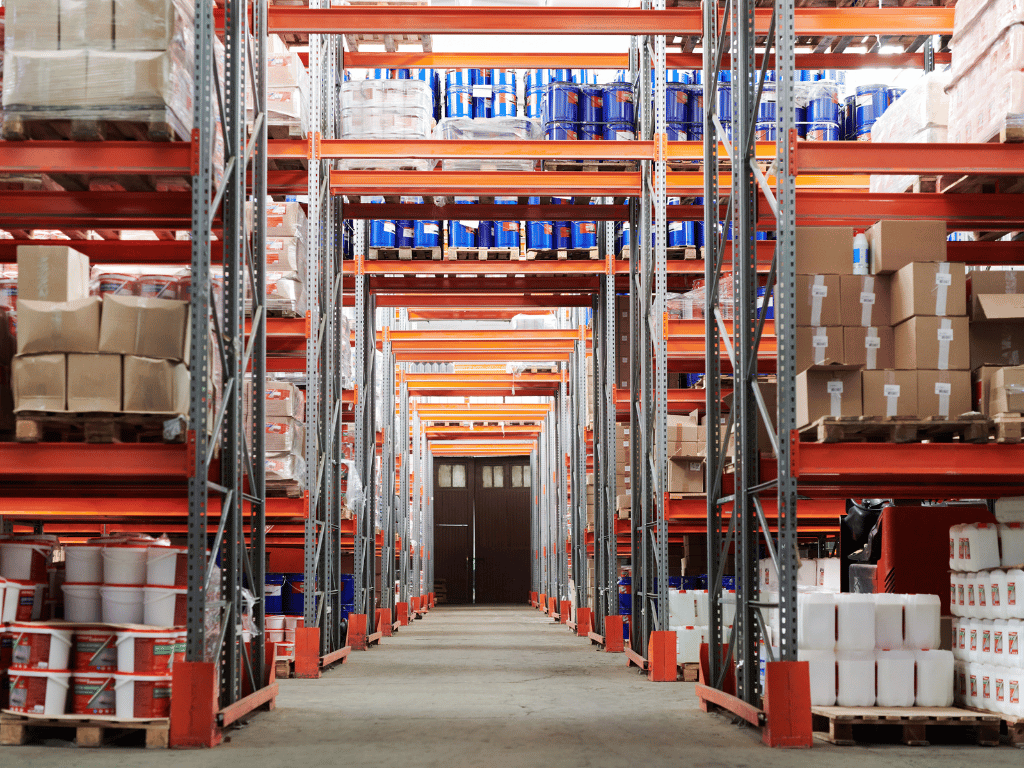

What standard pallet racking actually handles, and where it stops

Standard pallet racking in Singapore is engineered for forklift-loaded pallet operations under uniform load distribution. The defining numbers are familiar. Beam loads run 1,500 to 3,000 kg per pair, upright capacities sit at 6 to 10 tonnes per frame, and pallets stay at or below 1,500 kg each.

The structure works because pallet weight spreads across the beam length as a uniformly distributed load (UDL). A 2,500 kg beam pair rated UDL is safe for two 1,200 kg pallets sitting side by side, with the load spread along the full beam span.

Standard pallet racking starts to fail when the load profile shifts. Concentrated point loads from single heavy units. Pallets exceeding 1,500 kg each. Stock that requires forklift entry into the rack itself. These are the trigger points for upgrade, and they show up most often in manufacturing operations where standard pallet racking systems are forced into roles the spec was not designed for.

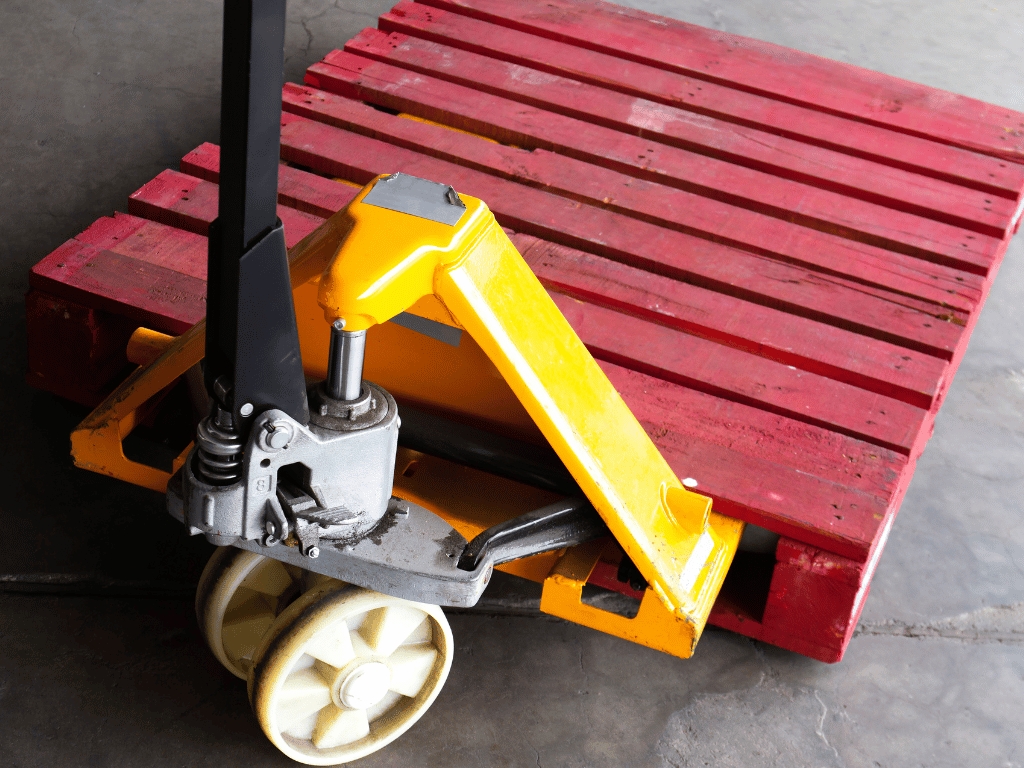

What actually changes when you go heavy duty

Heavy duty racking is not thicker pallet racking with a markup. The spec changes at every level of the structure, and each change exists for a reason.

Upright frame profile and steel gauge

Standard pallet rack uprights run 70 mm to 90 mm in cross-section depth, fabricated from 1.8 mm to 2.0 mm steel. Heavy duty uprights step up to 100 mm to 120 mm in depth, sometimes 140 mm for very tall installations, with 2.0 mm to 2.5 mm or thicker steel gauge.

The deeper profile resists buckling under axial load. The thicker gauge increases section modulus, which is what carries beam load down to the floor. A 90 mm upright rated 8 tonnes per frame is not interchangeable with a 100 mm upright rated 12 tonnes, even though both look similar at first glance.

Beam profile and load capacity

Standard pallet rack beams are typically 80 mm to 100 mm tall box or step beams, rated 1,500 kg to 3,000 kg per pair UDL. Heavy duty beams run 120 mm to 150 mm tall, with reinforced end connectors and beam loads of 2,500 kg to 5,000 kg per pair.

Beam height matters more than steel volume alone. Deeper beams resist deflection under load. A 100 mm beam will sag visibly at full UDL, while a 140 mm heavy duty beam at the same load barely flexes.

Base plate thickness and anchoring

Standard pallet rack base plates run 4 mm to 6 mm thick, anchored with M12 expansion bolts. Heavy duty base plates run 8 mm to 12 mm, anchored with M16 or M20 bolts, often using chemical anchors for higher uplift resistance.

The base plate transfers the full frame load to the slab. Under-spec base plates fail before the upright does, which is why floor flatness and slab capacity become more critical with heavy duty installations.

Bracing, safety pins, and seismic brackets

Heavy duty installations typically use additional horizontal and diagonal bracing across frame depth. Beam-to-upright connections require safety pins or locking clips rated to prevent dislodgement under impact. For installations above 6 m, seismic brackets and supplementary bracing aligned with the SEMA racking design codes become part of the standard scope.

Signals it’s time to upgrade from pallet to heavy duty

The decision usually comes from one of four operational signals.

Loads exceed 1,500 kg per pallet.

Standard beam ratings start to run out above 1,500 kg per pallet. A 2,500 kg beam pair holding two 1,400 kg pallets sits at 112 percent of rated capacity. The beam will sag, the connectors will fatigue, and the failure mode is progressive, not sudden. The pallet racking load capacity guide breaks down how UDL ratings actually apply to real pallet weights in operation.

Stock is a concentrated point load, not a distributed pallet.

Engine blocks, moulds, metal coils, and dies sit on a small footprint. A 1,200 kg engine block on a 600 x 600 mm pallet behaves nothing like a 1,200 kg pallet of cartons. The point load concentrates stress at a single section of the beam, and standard beams rated for UDL can fail at 60 to 70 percent of their rated load when used this way.

Existing racks show visible deflection or damage.

Beams sagging more than 5 mm at the centre under load are running at or above rated capacity. Bent uprights, cracked welds, or distorted base plates are signs that the rack is being pushed outside its design envelope. Repair only goes so far. Replacement with the correct heavy duty spec is the safer long-term answer.

The application is structural manufacturing.

Engine remanufacturing, injection moulding, metal stamping, and steel coil distribution all run loads that pallet racking was not designed for. The heavy duty racking applications guide covers the real cases by sector.

Point load vs UDL: the spec detail that matters most

This is the single most misunderstood number on a racking quote. UDL (uniformly distributed load) means the weight is spread across the full beam length. Point load means the weight is concentrated at one spot.

A beam rated 2,500 kg UDL is not rated 2,500 kg point load. The same beam under a centred point load may safely hold only 1,500 kg to 1,800 kg, depending on profile and span. Loading a 2,000 kg mould tool on a beam rated 2,500 kg UDL overloads the beam by 10 to 25 percent against its real point load capacity, even though the paper math reads safe.

Heavy duty racking is engineered with UDL and point load capacity stated separately. A correctly specified rack for mould or coil storage will list the point load rating against the actual load footprint and position. If a quote only shows UDL, the spec is incomplete.

Common upgrade mistakes that cost money

Treating beam upgrade as a frame upgrade.

Swapping beams alone does not upgrade the rack. The uprights have to carry the new beam load down to the slab. If the existing 90 mm uprights cannot take 5,000 kg per frame, heavier beams just overload them.

Ignoring slab capacity.

Heavy duty racks concentrate higher loads on the same baseplate footprint. The slab beneath has to handle the higher point pressure. Older Singapore industrial units with thin floor slabs may need slab reinforcement or thicker bedding before heavy duty racking can be installed safely.

Missing the impact protection upgrade.

Heavier loads mean heavier forklifts, which means heavier impact damage if a truck clips an upright. Heavy duty installations should include upright protectors and end-of-aisle guards from day one, available as part of the standard racking accessories range. Skipping these saves a small line item and risks a major repair later.

Skipping the load test at handover.

Heavy duty installations should be physically load tested before handover, especially for point-load applications. Documented test results are also what the WSH Council inspection framework expects from warehouse occupiers during compliance reviews.

Making the right spec call

Standard pallet racking covers most warehouse operations in Singapore, but it has clear limits. Loads above 1,500 kg per unit, point loads from engines or moulds, or visible beam deflection on existing racks all point toward a heavy duty upgrade. The spec changes at every level: upright profile, beam height, base plate thickness, anchoring, and bracing.

The cost differential runs 30 to 60 percent per bay, and the payback shows up in avoided rack failure, retained storage capacity, and the ability to put away the loads that pallet racking was forcing operations to leave on the floor. For a layout review across the wider warehouse racking systems mix, NTL Storage can survey the site against the actual load profile before any steel is ordered.

Talk to NTL Storage about a heavy duty racking assessment.

Frequently Asked Questions

What’s the difference between heavy duty rack and standard pallet rack?

Heavy duty rack uses 100 to 120 mm upright profiles, 2.0 to 2.5 mm steel gauge, and beams rated 2,500 to 5,000 kg per pair. Standard pallet rack uses 70 to 90 mm uprights, 1.8 to 2.0 mm steel, and beams rated 1,500 to 3,000 kg per pair. Heavy duty also uses thicker base plates and stronger anchors.

When should I upgrade from pallet racking to heavy duty?

Upgrade when pallet loads exceed 1,500 kg per unit, when stock is a concentrated point load like engine blocks or mould tools, or when existing beams show visible deflection above 5 mm at centre span. Manufacturing operations storing moulds, coils, or machined parts typically need heavy duty from day one to meet load and safety requirements.

What is the difference between UDL and point load on a rack beam?

UDL (uniformly distributed load) means the weight is spread across the full beam length. Point load means the weight is concentrated at a single spot, like a mould on a small pallet. A beam rated 2,500 kg UDL may safely hold only 1,500 to 1,800 kg as a point load, depending on profile and span.

How much more does heavy duty racking cost compared to pallet racking?

Heavy duty racking costs 30 to 60 percent more per bay than standard pallet racking in Singapore, depending on profile, height, and anchoring spec. The payback comes from avoided rack failure, retained storage capacity, and the ability to handle point loads and heavier pallets without forcing operations to under-load the structure.

Do I need PE endorsement for a heavy duty rack installation?

Heavy duty racking installed above certain height thresholds, integrated into mezzanines, or carrying structural loads typically requires Professional Engineer endorsement on the structural drawings. Free-standing heavy duty racking at standard heights may not, but stamped drawings referencing SS EN 15512 calculations should always be supplied regardless of PE requirement.
