Warehouse Racking Pre-Installation Checklist: 14 Items

Most warehouse racking failures trace back to inputs that should have been checked weeks before the steel arrived on site. Floor flatness, sprinkler clearance, pallet dimensions, and forklift compatibility all sit on that list. This blog will walk you through a 14-point warehouse racking pre-installation checklist used on real Singapore warehouse racking systems projects to lock down design before sign-off.

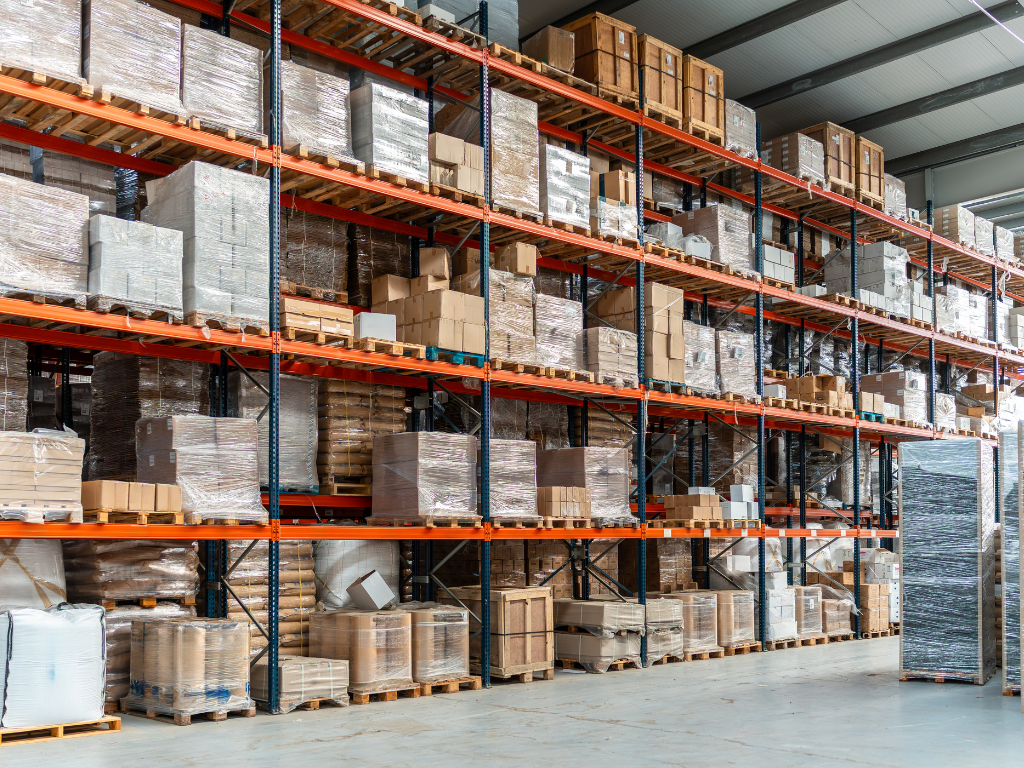

Why pre-installation checks save more than they cost

A racking project locks in three to five years of operating cost the day the layout drawing is signed. Every fix after that point is more expensive than the original spec. Cutting a beam shorter on day one costs nothing. Replacing it after the first quarter of operation means downtime, dismantling adjacent rows, and a fresh round of load testing.

The checklist below covers structural inputs, operational inputs, and contractual inputs. Skipping any one of them is how SME warehouses end up with rack rows that block fire access, beam levels that do not match pallet heights, or aisles that fail the first WSH inspection. The fixes are predictable. The reason they happen is almost always that someone signed off on a drawing without verifying these 14 items first.

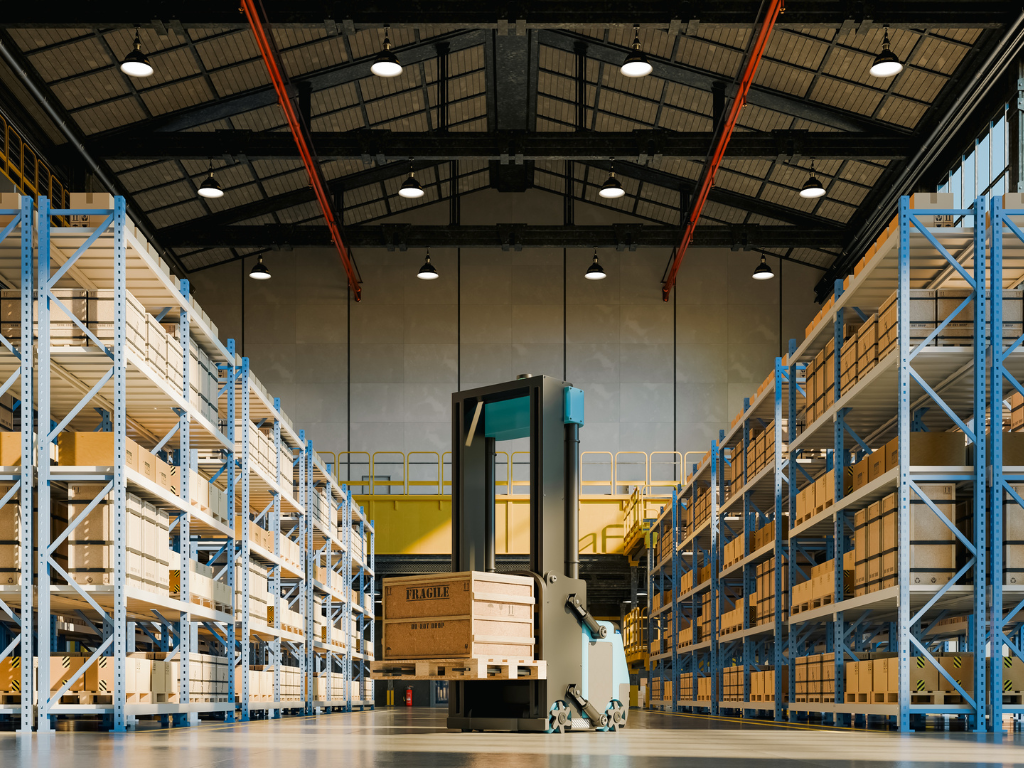

Structural and site inputs

1. Floor slab thickness and load rating

Pallet racking concentrates load through baseplates onto a small footprint. A 1,200 kg pallet on a beam pair transmits roughly 600 kg per upright, plus the rack self-weight. The floor slab needs documented load capacity. For most Singapore industrial buildings, the slab handles 1.5 to 3.0 tonnes per square metre, but mezzanine floors and older units can be lower. Confirm the rating with the building owner or structural drawings before specifying any pallet racking systems configuration.

2. Floor flatness and FF/FL ratings

Floor flatness affects both safety and forklift cycle time. A reach truck working at 8 m lift cannot operate safely on a slab that dips 15 mm over 3 m. For very narrow aisle work, FF35/FL25 is the working benchmark. Standard pallet racking tolerates FF20/FL15. If the floor is out of spec, the fix is either grinding, self-levelling compound, or shimming each baseplate, and the cost should be priced into the contract before installation starts.

3. Ceiling and sprinkler clearance

The minimum vertical clearance between the top of stored goods and the ceiling depends on the fire suppression system. SCDF guidelines and the Singapore Civil Defence Force fire safety requirements for warehouses set the standard for in-rack sprinklers, ceiling sprinklers, and aisle clearance. A common requirement is 450 mm minimum clearance between the topmost pallet and the sprinkler heads. If the rack design ignores this, the fire safety certificate will not be issued, and the warehouse cannot legally operate.

4. Column positions and obstructions

Building columns rarely sit on a clean grid that matches rack rows. Mark every column on the layout drawing, plus drainage channels, electrical risers, dock equipment, and overhead doors. The layout has to accommodate them. Trying to force a uniform grid around a column that breaks an aisle is how warehouses end up with one bay shorter than the rest, where pallets do not fit and pickers waste time on a non-standard bay.

5. Seismic bracing requirements

Singapore is a low-seismic-risk zone, but racking installed at heights above 6 m or in cold storage with high pallet loads still requires bracing calculated against horizontal forces. The structural drawings should show diagonal bracing positions and frequency. SS EN 15512 and the bracing rules published by SEMA’s racking design guidance define the standard approach. Cold storage layouts in particular need bracing reviewed under low-temperature steel behaviour.

Operational inputs

6. Pallet dimensions and weight profile

The most common pallet in Singapore is 1,000 x 1,200 mm. The 1,100 x 1,100 mm Asian pallet is a frequent second. Beams have to be sized for the worst-case pallet plus 75 mm to 100 mm clearance per side. Pallet weight matters as much as size. A nominal 1,000 kg pallet rating means little if the actual stock includes 1,400 kg full pallets at peak season. List every pallet type, size, and worst-case weight before specifying beam capacity.

7. Forklift fleet and lift heights

The forklift fleet sets the floor for aisle width and the ceiling for upright height. A counterbalance forklift cannot work in 2.7 m aisles, and a reach truck designed for 7 m lift will struggle in a layout calling for 8 m put-away. Confirm truck specs against the racking drawing. Lift height and aisle width interact, which the warehouse aisle width planning guide covers in detail.

8. Beam levels and pallet height variation

Beam levels are not always uniform. A warehouse storing 1.4 m mixed cartons on lower levels and 1.0 m bulk pallets on upper levels needs different beam spacing per level. The beam level schedule should reflect the actual stock, not a generic three-level layout. Each beam level lock-in costs nothing on the drawing and thousands to retrofit.

9. SKU profile and picking method

A high-SKU operation with hand picking from the ground floor needs different bay design than a low-SKU bulk pallet operation. Confirm the picking method (each picking, case picking, pallet picking) and the SKU velocity profile. Fast-moving SKUs belong on golden zone shelves at 0.6 m to 1.5 m height. Slow-moving SKUs go to upper levels. The layout should reflect this from day one, not after the first six months of complaints from the picking team.

10. Pallet flow direction and cross-aisle planning

Pallet flow direction is the operational input most often missed. Mark receiving, putaway, picking, and dispatch on the layout drawing. Cross-aisles need 4.0 m to 4.5 m of clearance for full counterbalance pallet movement. Loading bay clearance should give 4.5 m to 5.5 m between the dock door and the first rack row. Layouts that ignore flow direction force trucks to back-track, which doubles cycle time.

Contractual and compliance inputs

11. Stamped design drawings before deposit

A racking contractor should issue stamped or signed structural drawings showing beam levels, upright positions, anchor patterns, bracing layout, and load tables before any deposit goes out. Drawings without engineer sign-off are a red flag. The drawings are also the documents required for any future safety audit, and the warehouse occupier should keep a hard copy on site permanently.

12. Expansion allowance and reconfiguration capacity

Most SME warehouses need to add capacity within 24 to 36 months of move-in. Specify expansion allowance into the original layout. Leave at least 10 to 15 percent of floor area unallocated for future bays, and confirm the existing rack uses standard, available beam profiles that the contractor can supply for years to come. A custom-profile rack from a closing factory is a long-term liability.

13. Variation order process and payment milestones

Variations happen on most projects. The contract should require written variation orders with scope, price, and schedule impact for any change above a fixed threshold. Payment milestones for SME projects typically run 30 percent on order, 50 percent on delivery, 15 percent on installation completion, and 5 percent retention released after the defect liability period. Avoid contractors asking for 70 percent or more upfront.

14. Inspection and certification handover

A complete handover package includes load test results, beam level schedules, bracing layout drawings, the structural engineer’s design report, and a copy of the manufacturer’s product certificates. The first annual inspection should be scheduled within 12 months of handover. Operating without documented inspection puts the warehouse occupier in breach of WSH obligations under the WSH Council guidance for safe storage, regardless of who installed the racking.

Lock the inputs, and the install runs

A racking project that hits its schedule and stays on budget almost always has the same characteristic: the 14 items above were all confirmed before the deposit went out. The structural inputs match the slab. The operational inputs match the trucks and the pallets. The contractual inputs match the budget and the warranty needs. Skip any of them and the cost shows up later, usually under tighter time pressure.

If you are scoping a new fit-out or a layout refresh in Singapore, NTL Storage can run this checklist against your site, your operations, and your contract terms before any steel is ordered.

Frequently Asked Questions

What should I check before installing pallet racking?

Confirm fourteen inputs across three categories. Structural inputs cover floor slab rating, floor flatness, ceiling and sprinkler clearance, column positions, and seismic bracing. Operational inputs cover pallet dimensions, forklift fleet, beam levels, SKU profile, and pallet flow direction. Contractual inputs cover stamped drawings, expansion allowance, variation orders, payment milestones, and handover certification.

What floor flatness rating is needed for warehouse racking?

Standard pallet racking with reach truck operation works on FF20/FL15 floors. Very narrow aisle systems with turret trucks lifting above 8 m require FF35/FL25 for safe operation. Floors out of specification can be corrected with grinding, self-levelling compound, or shimmed baseplates, but the cost should be priced into the racking contract before installation.

How much sprinkler clearance is required above pallet racking?

The Singapore Civil Defence Force fire safety code requires a minimum vertical clearance between the topmost stored pallet and the ceiling sprinkler heads. The common benchmark is 450 mm, but in-rack sprinkler designs can require more. Confirm the exact figure against the building’s fire suppression drawings before signing off on rack height and beam levels.

Why are stamped design drawings important for warehouse racking?

Stamped structural drawings document beam levels, upright positions, anchor patterns, bracing layout, and load tables certified by a qualified engineer. They are the basis for installation, the reference for WSH inspections, and the evidence required if there is ever an incident. A racking contractor who cannot issue stamped drawings before the deposit is not a contractor to sign with.

What payment milestones are normal for an SME racking project?

The standard structure for SME warehouse racking projects in Singapore is 30 percent on order confirmation, 50 percent on delivery to site, 15 percent on installation completion, and 5 percent retention released after the defect liability period closes. Contractors asking for 70 percent or more upfront with no delivery-linked milestone is a commercial red flag.
